Manuaalne virnastaja Quicklift 85-2900 mm, 1000 kg, SSES1029
- Tugeva konstruktsiooniga manuaalne virnastaja.
- Varustatud jalapumbaga.
- Virnastaja laius 850 mm ja pikkus 1980 mm.
- Tõstekiirus 45 mm/tõste.
- Kahvlite laius 550 mm.
- Kahvlite pikkus 1150 mm.
- Tõstevõime 1000 kg.
- Tõstekõrgus 85-2900 mm.
- Masti kõrgus 1690 mm.
- Pöörderaadius 1360 mm.
- Kahvli rattad nailon, Ø 74 x 55 mm.
- Juhtrattad nailon, Ø 180 x 50 mm, varustatud piduriga.
- Kaal on 350 kg.
Manual stacker PL 1000 ST, I43101
- Manual stacker with robust construction.
- Equipped with foot pump.
- Width 850 mm and length 1980 mm.
- Lifting speed 22 mm/lift.
- Width of forks 550 mm.
- Length of forks 1150 mm.
- Lifting capacity 1000 kg.
- Height 85-800 mm.
- Pole height 1200 mm.
- Conveyor radius 1380 mm.
- Fork wheels nylon, Ø 74 x 55 mm.
- Guide wheels nylon, Ø 180 x 50 mm, equipped with brake.
- The weight is 180 kg.
manual stacker PL 1600 ST, I43161
- Manual stacker with robust construction.
- Equipped with foot pump.
- Width 850 mm and length 1980 mm.
- Lifting speed 22 mm/lift.
- Width of forks 550 mm.
- Length of forks 1150 mm.
- Lifting capacity 1000 kg.
- Lifting height 85-1600 mm.
- Height of mast 1980 mm.
- Conveyor radius 1380 mm.
- Guide wheels nylon, Ø 180 x 50 mm, equipped with brake.
- Fork wheels, nylon, Ø 74 x 55 mm.
- The weight is 220 kg.
manual stacker PL 2500 ST, I43251
- Manual stacker with robust construction.
- Equipped with foot pump.
- Width 755 mm and length 1655 mm.
- Lifting speed 22 mm/lift.
- Width of forks 550 mm.
- Length of forks 1150 mm.
- Lifting capacity 1000 kg.
- Lifting height 90-2500 mm.
- Max mast height 2925 mm.
- Min pole height 1838 mm.
- Conveyor radius 1380 mm.
- Guide wheels nylon, Ø 150 x 50 mm, equipped with brake.
- Fork wheels nylon, Ø 80 x 70 mm.
- The weight is 280 kg.

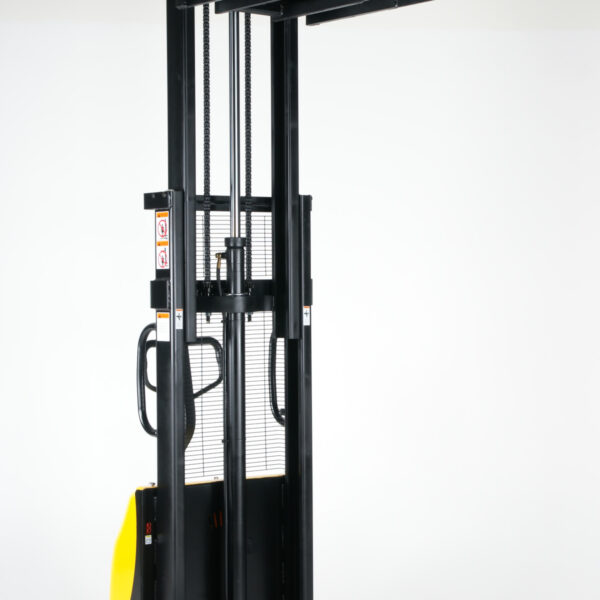

Poolelektriline virnastaja PL 3350 1000kg / 3350mm, I43356
-
- Poolelektriline virnastaja kasutab tõsteks akutoitel mootorit, teisaldamine on manuaalne.
- Virnastaja on varustatud aku ja laadijaga.
- Tõstevõime 1000 kg.
- Kahvlite laius 570 mm.
- Kahvlite pikkus 1150 mm.
- Virnastaja laius 770 mm ja pikkus 1720 mm.
- Tõstekõrgus 3300 mm.
- Masti kõrgus 2250 mm.
- Pöörderaadius 1280 mm.
- Tõstekiirus koormaga 90 mm/s.
- Langetamiskiirus 100-120 mm/s.
- Mootori võimsus 1,5 kW.
- Aku 12V/85Ah.
- Laadija 12V/20Ah.
- Juhtrattad nailon, Ø 180 x 50 mm.
- Kahvli rattad nailon, Ø 74 x 70 mm.
- Kaal koos akuga 430 kg.
Semi-electric stacker PL 800-ST EN
- The semi-electric stacker uses a battery-powered motor for the lifting, the moving is manual.
- The stacker is equipped with a battery and charger.
- Lifting capacity 1000 kg.
- Width of forks 570 mm.
- Length of forks 1150 mm.
- The width of the stacker is 770 mm and the length 1720 mm.
- Lifting height 800 mm.
- Pole height 1200 mm.
- Conveyor radius 1280 mm.
- Lifting speed with load 90 mm/s.
- Drop speed 100-120 mm/s.
- Engine power 1,5 kW.
- Battery 12V/85Ah.
- Charger 12V/20Ah.
- Guide wheels nylon, Ø 180 x 50 mm.
- Fork wheels nylon, Ø 74 x 70 mm.
- Weight including battery 300 kg.
semi-electric stacking PL 1600 EL, I43166
-
- The semi-electric stacker uses a battery-powered motor for the lifting, the moving is manual.
- The stacker is equipped with a battery and charger.
- Lifting capacity 1000 kg.
- Width of forks 580 mm.
- Length of forks 1150 mm.
- Width 800 mm and length 1678 mm.
- Lifting height 1600 mm.
- Pole height 2090 mm.
- Conveyor radius 1425 mm.
- Lifting speed with load 80 mm/s.
- Drop speed 120-150 mm/s.
- Engine power 1,5 kW.
- Battery 12V/120Ah.
- Charger 12V/15Ah.
- Guide wheels nylon, Ø 180 x 50 mm.
- Fork wheels nylon, Ø 80 x 78 mm.
- Weight including battery 400 kg.
Semi-electric stacking PL 2500 EL, I43256
- The semi-electric stacker uses a battery-powered motor for the lifting, the moving is manual.
- The stacker is equipped with a battery and charger.
- Lifting capacity 1000 kg.
- Width of forks 580 mm.
- Length of forks 1150 mm.
- Width 800 mm and length 1840 mm.
- Lifting height max 2500 mm.
- Lifting height min 90 mm.
- Pole height 1840 mm.
- Conveyor radius 1425 mm.
- Lifting speed with load 80 mm/s.
- Lowering speed with/ without load 150/120 mm/s.
- Engine power 1,5 kW.
- Battery 12V/120Ah.
- Charger 12V/15Ah.
- Guide wheels nylon, Ø 180 x 50 mm.
- Fork wheels nylon, single Ø 80 x 78 mm.
- Weight including battery 460 kg.
semi-electric stacking PL 3300 EN
- The semi-electric stacker uses a battery-powered motor for the lifting, the moving is manual.
- The stacker is equipped with a battery and charger.
- Lifting capacity 1000 kg.
- Width of forks 570 mm.
- Length of forks 1150 mm.
- The width of the stacker is 770 mm and the length 1720 mm.
- Lifting height 3300 mm.
- Pole height 2250 mm.
- Conveyor radius 1280 mm.
- Lifting speed with load 90 mm/s.
- Drop speed 100-120 mm/s.
- Engine power 1,5 kW.
- Battery 12V/85Ah.
- Charger 12V/20Ah.
- Guide wheels nylon, Ø 180 x 50 mm.
- Fork wheels nylon, Ø 74 x 70 mm.
- Weight including battery 430 kg.
tuner WS10S-3000, I45104
Capacity Kg: 1000
Min fork height mm: 90
Lifting height mm: 3000
Centre of gravity separation: 600
Min support height: 2035
Max support height: 3500
Total width mm: 820
Total lenght mm: 1770
Free lift mm: 0
Fork width mm: 160
Fork length mm: 1150
Driving speed without/with load km/h: 4/3.5
Lifting speed without/with load mm/s: 134/95
Lowering speed without/with load mm/s: 94/130
Swing radius mm: 1430
Electronics: Curtis
Drive motor: 0,65 kW
Lifting motor: 1,5 kW
Truck battery: 75Ah/12V x 2
Charger: Built-in
Fork wheel mm: Polyutethane 78 x 93
Drive wheel mm: 220 x 70
Gradient capacity without/with load: 10/3 degrees
Brake: Electromagnetic
Speed regulation: Electronic impulse
Weight kg incl. battery: 570
Mast type: Duplex
Virnastaja 1500 mm, 100kg, SSE100
- Kompaktne, kergesti teisaldatav virnastaja, mis sobib eriti kitsastesse ruumidesse.
- Virnastajale sobivad kohad näiteks apteegid, raamatukogud, köögid, kauplused, laod jne.
- Virnastaja mõõdud on KxLxP (mm) 840x600x1980.
- Tõsteplatvormi mõõdud PxL (mm) 600x470.
- Tõstevõime 100 kg
- Tõstekõrgus 1500 mm, tõstekiirus koormata/koormaga 70/83 mm/s.
- Langetamiskiirus koormata/koormaga 85/101 mm/s.
- Aku 24V/12Ah.
- Kahvlirattad Ø 75 x 32 mm, juhtrattad, Ø 125 x 32 mm, polüuretaan PU.
- Kaal on 63 kg.

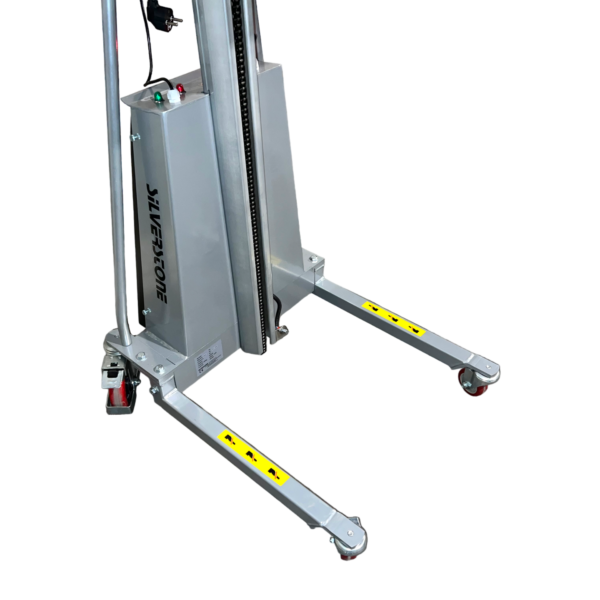

Virnastaja E100A 1700 mm, I44040
-
- Kompaktne, kergesti teisaldatav virnastaja, mis sobib eriti kitsastesse ruumidesse.
- Virnastajale sobivad kohad näiteks apteegid, raamatukogud, köögid, kauplused, laod jne.
- Virnastaja mõõdud on KxLxP (mm) 1990x600x840.
- Tõsteplatvormi mõõdud PxL (mm) 600x470.
- Tõstevõime 100 kg
- Tõstekõrgus 1700 mm, tõstekiirus koormata/koormaga 70/83 mm/s.
- Langetamiskiirus koormata/koormaga 85/101 mm/s.
- Aku 24V/12Ah.
- Kahvlirattad Ø 75 x 32 mm, juhtrattad, Ø 125 x 32 mm, polüuretaan PU.
- Kaal on 66 kg.
