ROLLER CONVEYOR PALLETS

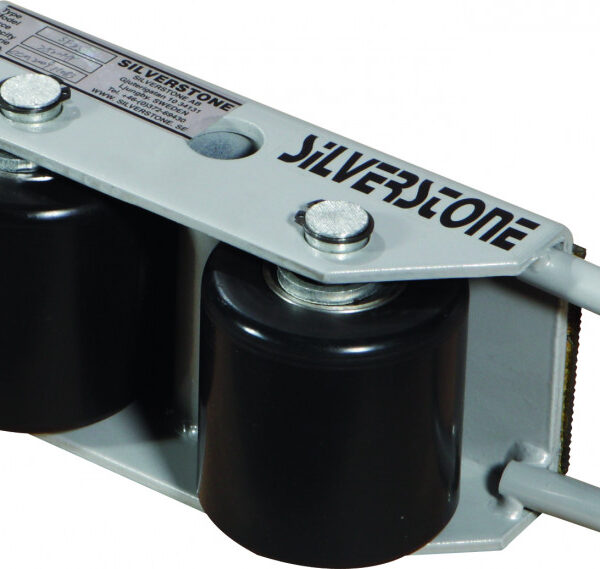

Mechanical roller 2T, I57702
- Roller capacity 2000 kg.
- The overall dimensions of the roller are P x L x H (mm) 270 x 115 x 110.
- Each roller has two nylon wheels.
- Roller wheel dimensions: 82x100 mm.
- The flat surface of the roller is equipped with a rubber surface to protect the transported goods from scratches.
- The weight of the roller is 7,5 kg.
Transfer tray CM120-N 12T for 1 tl, I57728
-
- Roller set capacity 2x6000 kg.
- The set includes 2 rollers and 2 steel rods.
- Overall dimensions of the roller are P x L x H (mm) 360 x 220 x 115.
- The wheelset has twelve polyurethane wheels.
- Adjustable distance between the two rollers 720-1500 mm.
- Roller wheel dimensions: 90x85 mm.
- The flat surface of the roller is equipped with a rubber surface to protect the transported goods from scratches.
- The weight of the roller set is 38 kg.
Transfer tray CM240-N 12T for 1 piece, I57730
-
-
- Roller set capacity 2x12000 kg.
- The set includes 2 rollers and 2 steel rods.
- Overall dimensions of the roller are P x L x H (mm) 360 x 220 x 115.
- The castor set has sixteen steel wheels.
- Adjustable distance between the two rollers 720-1500 mm.
- Roller wheel dimensions: 85x83 mm.
- The flat surface of the roller is equipped with a rubber surface to protect the transported goods from scratches.
- The weight of the roller set is 65 kg.
-
Transfer vessel 2×3000 kg, I57726
- Roller set capacity 2x3000 kg.
- The set includes 2 rollers and 2 steel rods.
- The overall dimensions of the roller are P x L x H (mm) 300 x 250 x 115.
- The wheelset has eight polyurethane wheels.
- The distance between the two rollers is adjustable from 500 to 1400 mm.
- Roller wheel dimensions: 90x85 mm.
- The flat surface of the roller is equipped with a rubber surface to protect the transported goods from scratches.
- The weight of the roller set is 30 kg.
Transfer vessel SISF25 , 2,5T
Transit vessel 12T, I57712
- Roller capacity 12000 kg.
- The overall dimensions of the roller are P x L x H (mm) 345 x 400 x 145.
- Each reel has eight nylon wheels.
- Roller wheel dimensions: 115x60 mm.
- The flat surface of the roller is equipped with a rubber surface to protect the transported goods from scratches.
- The weight of the roller is 40 kg.
Transit vessel 24T, I57724
- Roller capacity 24000 kg.
- The overall dimensions of the roller are P x L x H (mm) 415 x 1120 x 145.
- Each roller has sixteen polyurethane wheels.
- Roller wheel dimensions: 115x60 mm.
- The flat surface of the roller is equipped with a rubber surface to protect the transported goods from scratches.
- The roller is equipped with a steering lever and rotating steering wheels, which allow the direction of the load to be changed smoothly in the desired direction.
- The weight of the roller is 130 kg.
Transit vessel SICM120 , 12T
Transit vessel SICM240 , 24T
Transit vessel SICM60 , 6T
Transit vessel SISC102 , 1T
- Carrying capacity of the roller 1000 kg.
- The overall dimensions of the roller are P x L x H (mm) 430 x 340 x 120.
- Each roller has 4 nylon wheels.
- Roller wheel dimensions: 100x35 and 75x46 mm.
- 2 riveted wheels
- The flat surface of the roller is equipped with a rubber surface to protect the transported goods from scratches.
Transit vessel SISC104 , 1T
- Carrying capacity of the roller 1000 kg.
- The overall dimensions of the roller are P x L x H (mm) 430 x 340 x 120.
- Each roller has 4 nylon wheels.
- Roller wheel dimensions: 100x35 and 75x46 mm.
- 4 non-fixed wheels
- The flat surface of the roller is equipped with a rubber surface to protect the transported goods from scratches.
