Pallet Rack Bottom Boracs, FIN, 3500x2300mm
367,00 € + KM
Pallet rack extension Boracs, FIN, 3500x3300mm
386,30 € + KM
Pallet rack extension Boracs, FIN, 3500x2300mm
244,70 € + KM

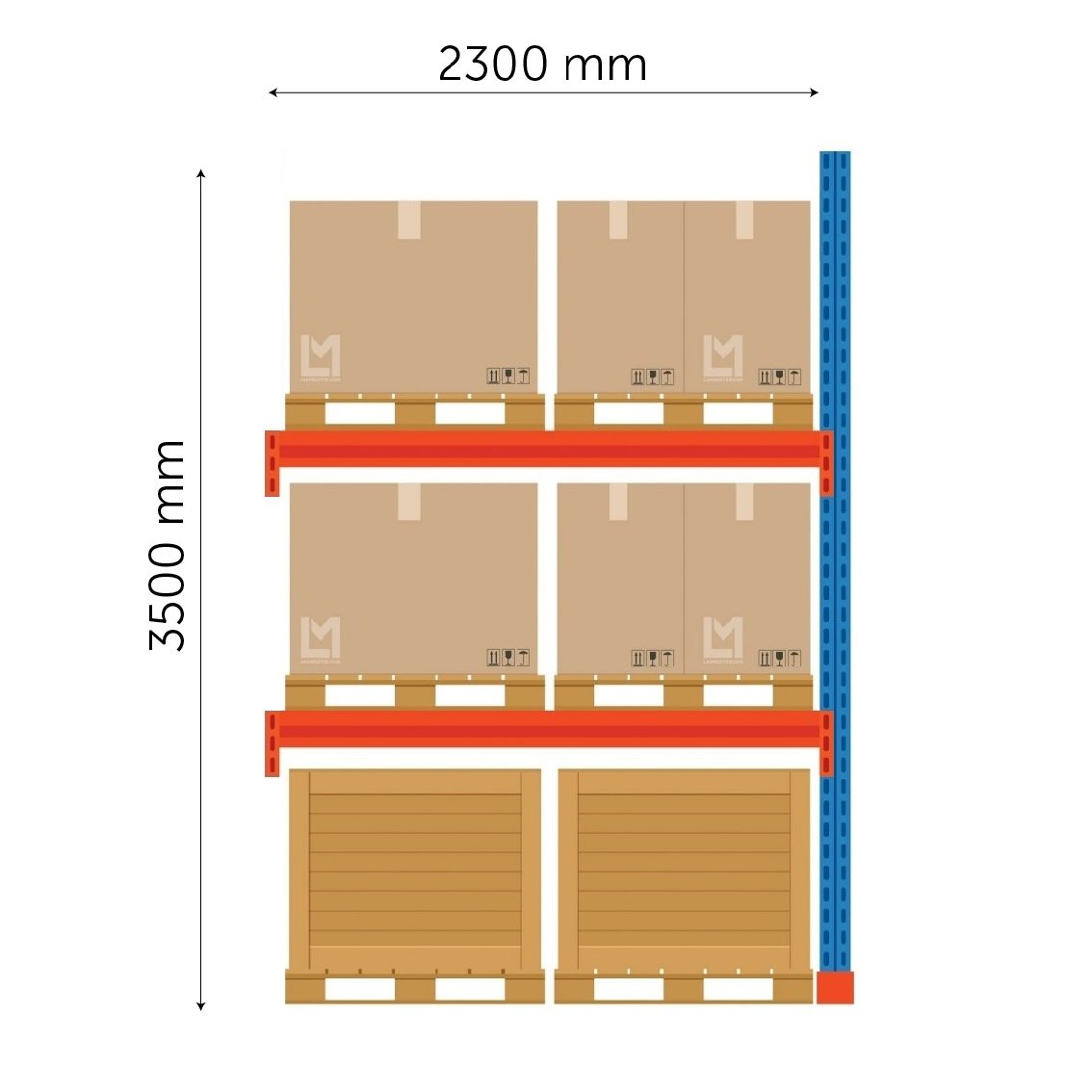

Dimensions: 3500 x 2300mm
Shelf height: 120mm
Load capacity: 2 x 1500kg
The remaining part of the pallet racking section includes:
Outside frame: 3500 x 1100 x 90 mm – 1 pcs;
Shelf space: 2300 x 120 x 50 mm – 4 pcs;
Stopper for shelf: 8 pcs;
Wedge anchor: 10 x 100 mm – 4 pcs (2 pcs / side frame)
Suitable for use with: 2 x FIN pallet, large warehouses and heavy goods
To assemble a pallet rack, you need one main section and as many extension sections as the length of the rack requires.
The prices are based on a sidewall with a depth of 1100mm and a load capacity of 12 tonnes.
Related products
Console shelf extension 2500 x 1200 x 1200mm
Height: 2500 mm Width: 1200 mm Depth: 1200 mm
Load capacity: 1 bracket 1000 kg
Flat surface: 4 pieces (foot+3)
The remaining part of the console shelf contains:
Shelving unit with leg - 1 piece
Support
- 1 pc
Consoles - 3 pcs
Professional cantilever rack with good load capacity for storing long products and material.
Changing the height of the console is instant i.e., no tools to screw and turn anything.
With a console shelf, you can create "post-free shelf space" (for example, a reception area, terminal, etc.) where the dimensions of the goods are variable.
Suitable for: storage of long products (wood, tiles, pipes, etc.)
Different section widths and depths are available, so there are plenty of options - feel free to ask for more!
Console shelf main body single-sided 3500 x 1200 x 1200mm
Height: 3500mm Width: 1200 mm Depth: 1200 mm
Load capacity: 1 bracket 1000 kg
Flat surface: 4 pieces (foot+3)
The main part of the console shelf contains:
Shelving unit with leg - 2 pcs
Cross brace - 1 pcs
Consoles - 6 pcs
Professional cantilever rack with good load capacity for storing long products and material.
Changing the height of the console is instant i.e., no tools to screw and turn anything.
With a console shelf, you can create "post-free shelf space" (for example, a reception area, terminal, etc.) where the dimensions of the goods are variable.
Suitable for: storage of long products (wood, tiles, pipes, etc.)
Different section widths and depths are available, so there are plenty of options - feel free to ask for more!
Double-sided console shelf main body 2500 x 1200 x 800mm*2
Height: 2500 mm Width: 1200mm Depth: 800mm
Load capacity: 500 kg on 1 console
Flat surface: 4 pieces (foot+3)
The main part of the console shelf contains:
Shelf with leg - 2 pcs
Support
- 1 pc
Consoles - 12 pcs
Professional cantilever rack with good load capacity for storing long products and material.
Changing the height of the console is instant i.e., no tools to screw and turn anything.
With a console shelf, you can create "post-free shelf space" (for example, a reception area, terminal, etc.) where the dimensions of the goods are variable.
Suitable for: storage of long products (wood, tiles, pipes, etc.)
Different section widths and depths are available, so there are plenty of options - feel free to ask for more!
Double-sided console shelf main body 4500 x 1200 x 800mm*2
Height: 5500mm Width: 1200 mm Depth: 800 mm
Load capacity: 500 kg on 1 console
Flat surface: 4 pieces (foot+3)
The main part of the console shelf contains:
Shelf with leg - 2 pcs
Support
- 1 pc
Consoles - 12 pcs
Professional cantilever rack with good load capacity for storing long products and material.
Changing the height of the console is instant i.e., no tools to screw and turn anything.
With a console shelf, you can create "post-free shelf space" (for example, a reception area, terminal, etc.) where the dimensions of the goods are variable.
Suitable for: storage of long products (wood, tiles, pipes, etc.)
Different section widths and depths are available, so there are plenty of options - feel free to ask for more!
Modular shelf extension, 2978 x 994 x 400mm
Height: 2978 mm Width: 994 mm Depth: 400 mm
Height of shelf: 30 mm Width of shelf extension: 994+1 x 31 mm (post)=1025 mm
Load capacity: 100 kg flat load capacity
The remainder of the modular shelf contains:
Exterior frame: 2978 x 31 x 400 mm - 1 pc;
Shelf: 994 x 30 x 400 mm - 5 pcs;
Arguably the best Lao in his class. Decent German quality. SSI SCHÄFER is one of the world's leading providers of warehouse equipment and automation. The shelf is characterised by a sturdy, cross-shaped post into which the shelf supports are pressed. Very easy to change the position of the shelf, using the 'drawer' principle, without the need for separate supports, bolts or screws.
Thanks to its sturdy shelving posts, the storage shelf is suitable for mezzanine floor planning.
NB!
A 5-plane modular shelf is shown as an example. The plane step is 50mm. Assemble your own set of tiles and frames starting from 2 frames and 3 tiles. We assemble the frames for you, so less headaches for you.
Suitable for use with: various smaller goods, small goods. Also use shelving units made by the same shelving manufacturer and accurately sized.
https://youtu.be/qXxqp4J50rQ
Modular shelf extension, 2978 x 994 x 600mm
Height: 2978 mm Width: 994 mm Depth: 600 mm
Height of shelf: 30 mm Width of shelf extension: 994+1 x 31 mm (post)=1025 mm
Load capacity: 100 kg flat load capacity
The remainder of the modular shelf contains:
Exterior frame: 2978 x 31 x 600 mm - 1 pcs;
Shelf: 994 x 30 x 600 mm - 5 pcs;
Arguably the best Lao in his class. Decent German quality. SSI SCHÄFER is one of the world's leading providers of warehouse equipment and automation. The shelf is characterised by a sturdy, cross-shaped post into which the shelf supports are pressed. Very easy to change the position of the shelf, using the 'drawer' principle, without the need for separate supports, bolts or screws.
Thanks to its sturdy shelving posts, the storage shelf is suitable for mezzanine floor planning.
NB!
A 5-plane modular shelf is shown as an example. The plane step is 50mm. Assemble your own set of tiles and frames starting from 2 frames and 3 tiles. We assemble the frames for you, so less headaches for you.
Suitable for use with: various smaller goods, small goods. Also use shelving units made by the same shelving manufacturer and accurately sized.
https://youtu.be/qXxqp4J50rQ
Modular shelving unit, 2978 x 1282 x 400mm
Height: 2978 mm Width: 1282 mm Depth: 400 mm
Height of shelf: 30 mm Width of shelf extension: 1282+1 x 31 mm (post)=1313 mm
Load capacity: 150 kg flat weight
The remainder of the modular shelf contains:
Exterior frame: 2978 x 31 x 400 mm -1 pcs;
Shelf: 1282 x 30 x 400 mm - 5 pcs;
Arguably the best Lao in his class. Decent German quality. SSI SCHÄFER is one of the world's leading providers of warehouse equipment and automation. The shelf is characterised by a sturdy, cross-shaped post into which the shelf supports are pressed. Very easy to change the position of the shelf, using the 'drawer' principle, without the need for separate supports, bolts or screws.
Thanks to its sturdy shelving posts, the storage shelf is suitable for mezzanine floor planning.
NB!
A 5-plane modular shelf is shown as an example. The plane step is 50mm. Assemble your own set of tiles and frames starting from 2 frames and 3 tiles. We assemble the frames for you, so less headaches for you.
Suitable for use with: various smaller goods, small goods. Also use shelving units made by the same shelving manufacturer and accurately sized.
https://youtu.be/qXxqp4J50rQ
Modular shelving base, 2978 x 1282 x 600mm
Height: 2978 mm Width: 1282 mm Depth: 600mm
Height of shelf: 30 mm Width of main part of shelf: 1282+2 x 31 mm (post)=1344 mm
Load capacity: 150 kg flat weight
The main part of the modular shelf contains:
External frame: 2978 x 31 x 600 mm - 2 pcs;
Shelf: 1282 x 30 x 600 mm - 5 pcs;
Support grid: 1 pc.
Arguably the best Lao in his class. Decent German quality. SSI SCHÄFER is one of the world's leading providers of warehouse equipment and automation. The shelf is characterised by a sturdy, cross-shaped post into which the shelf supports are pressed. Very easy to change the position of the shelf, using the 'drawer' principle, without the need for separate supports, bolts or screws.
Thanks to its sturdy shelving posts, the storage shelf is suitable for mezzanine floor planning.
NB!
A 5-plane modular shelf is shown as an example. The plane step is 50mm. Assemble your own set of tiles and frames starting from 2 frames and 3 tiles. We assemble the frames for you, so less headaches for you.
Suitable for use with: various smaller goods, small goods. Also use shelving units made by the same shelving manufacturer and accurately sized.
https://youtu.be/qXxqp4J50rQ
