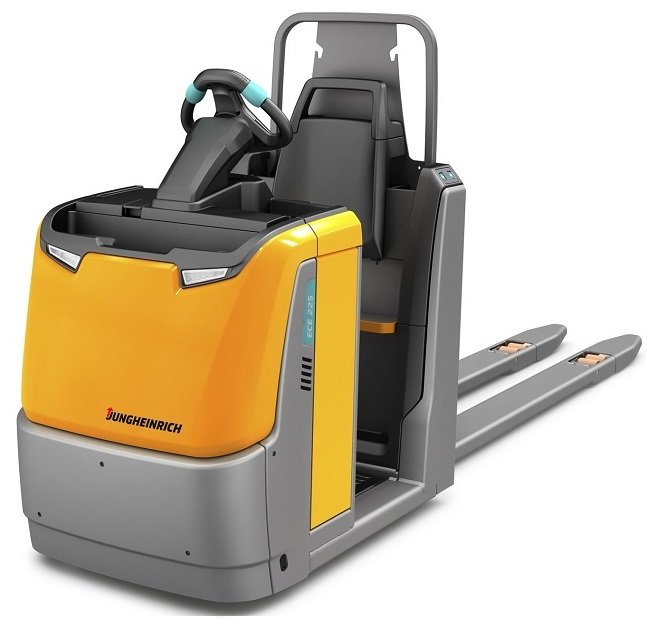

Stacker truck ECE 220/225 Jungheinrich
9 600,00 € + KM
Additional information: price (al.9600.00) Jungheirich low loader with lifting capacity up to 2500kg.
The ECE 220/225 is a very handy low-loader. This well-designed forklift provides the operator with a comfortable ride, with quick on and off. The low platform and back support ensure efficient work when stacking. It is also possible to choose a model with long forks, which adds a base and provides extra capacity if needed. There is also the optional easyPilot function, which can be used in conjunction with the remote control to automatically move the lift forward.
Related products
grin ECL 1035, I45006
Capacity Kg: 1000 Min fork height mm: 85 Lifting height mm: 3440 Centre of gravity separation: 600 Min support height: 2250 Min support height: 3925 Total width mm: 800 Total length mm: 1800 Free lift mm: 70 Fork width mm: 570 Fork length mm: 1150 Driving speed without/with load km/h: 4.5/4.3 Lifting speed without/with load mm/s: 160/130 Lowering speed without/with load mm/s: 110/130 Swing radius mm: 1485 Electronics: Curtis Drive motor: 0.45 kW Lifting motor: 2.2 kW Truck battery: 85Ah/24V Charger: Built In Fork wheel mm: Polyutethane 80 x 93 Drive wheel mm: 220 x 70 Gradient capacity without/with load: 10/5 degrees Brake: Electromagnetic Speed regulation: Electronic impulse Weight kg incl. battery: 540 Mast type: Duplex
The ECL is an economical walkie-electric stacker, with rated capacity of 1000 kg and a lifting height of 3440 mm. The compact and light design is suitable for a variety of low duty applications in warehouses.
grinner ECL 1029, I45004
- A safe and reliable electric motor driven stacker.
- The stacker is compact, with an overall width of 800 mm and a length of 1800 mm.
- Compact in tight spaces.
- The fork measures 570 x 1150 mm.
- Min forks height 85 mm.
- Driving speed with load 4,3 km/h, without load 4,5 km/h.
- Drive motor power 0,45 kW.
- Battery 85Ah/24 V.
- Built-in charger.
- Guide wheels Ø 220 x 70 mm, fork wheels polyurethane Ø 80 x 93 mm.
- Electromagnetic brake.
- Conveyor radius 1485 mm.
- Centre of gravity 600 mm.
- Lifting capacity 1000 kg.
- Lifting height 2840 mm.
- Pole height 1950 mm.
- Pole type standard pole.
- Lifting speed (loaded/unloaded) 130/160 mm/s.
- Rate of descent (loaded/unloaded) 130/110 mm/s.
- Lift motor power 2,2 kW.
- Electromagnetic traction braking.
- The weight is 510 kg.
manual stacker PL 2500 ST, I43251
- Manual stacker with robust construction.
- Equipped with foot pump.
- Width 755 mm and length 1655 mm.
- Lifting speed 22 mm/lift.
- Width of forks 550 mm.
- Length of forks 1150 mm.
- Lifting capacity 1000 kg.
- Lifting height 90-2500 mm.
- Max mast height 2925 mm.
- Min pole height 1838 mm.
- Conveyor radius 1380 mm.
- Guide wheels nylon, Ø 150 x 50 mm, equipped with brake.
- Fork wheels nylon, Ø 80 x 70 mm.
- The weight is 280 kg.
semi-electric stacking PL 1600 EL, I43166
-
- The semi-electric stacker uses a battery-powered motor for the lifting, the moving is manual.
- The stacker is equipped with a battery and charger.
- Lifting capacity 1000 kg.
- Width of forks 580 mm.
- Length of forks 1150 mm.
- Width 800 mm and length 1678 mm.
- Lifting height 1600 mm.
- Pole height 2090 mm.
- Conveyor radius 1425 mm.
- Lifting speed with load 80 mm/s.
- Drop speed 120-150 mm/s.
- Engine power 1,5 kW.
- Battery 12V/120Ah.
- Charger 12V/15Ah.
- Guide wheels nylon, Ø 180 x 50 mm.
- Fork wheels nylon, Ø 80 x 78 mm.
- Weight including battery 400 kg.
Semi-electric stacking PL 2500 EL, I43256
- The semi-electric stacker uses a battery-powered motor for the lifting, the moving is manual.
- The stacker is equipped with a battery and charger.
- Lifting capacity 1000 kg.
- Width of forks 580 mm.
- Length of forks 1150 mm.
- Width 800 mm and length 1840 mm.
- Lifting height max 2500 mm.
- Lifting height min 90 mm.
- Pole height 1840 mm.
- Conveyor radius 1425 mm.
- Lifting speed with load 80 mm/s.
- Lowering speed with/ without load 150/120 mm/s.
- Engine power 1,5 kW.
- Battery 12V/120Ah.
- Charger 12V/15Ah.
- Guide wheels nylon, Ø 180 x 50 mm.
- Fork wheels nylon, single Ø 80 x 78 mm.
- Weight including battery 460 kg.
