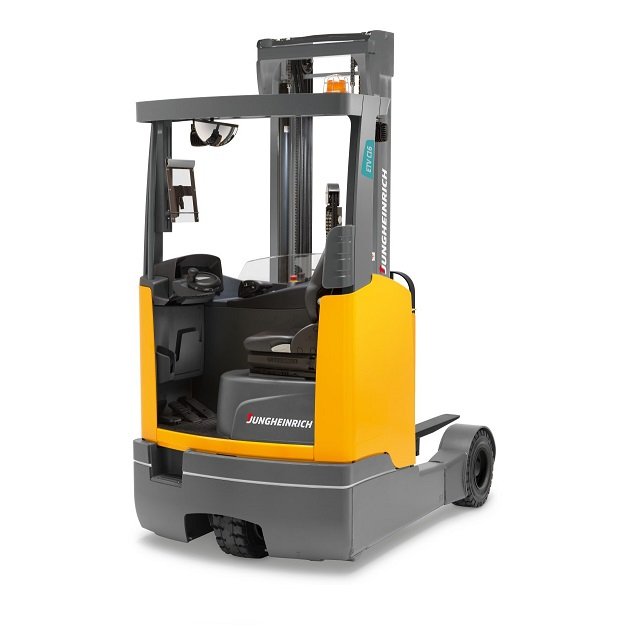

Stacker with sliding mast ETV C16/C18 Jungheinrich
28 000,00 € + KM
Additional information: price (al.28000.00) Jungheirich sliding mast stacker with lifting capacity up to 2000kg.
The ETV C16/C18 is a good combination and an example of a two in one lift. Slightly higher clearance and soft wheels give you the option to charge with a stacker outdoors. This is a good way to organise indoor and outdoor storage on a single machine. Lifting heights according to the choice of mast 4200mm-7400mm.
Related products
grin ECL 1035, I45006
Capacity Kg: 1000 Min fork height mm: 85 Lifting height mm: 3440 Centre of gravity separation: 600 Min support height: 2250 Min support height: 3925 Total width mm: 800 Total length mm: 1800 Free lift mm: 70 Fork width mm: 570 Fork length mm: 1150 Driving speed without/with load km/h: 4.5/4.3 Lifting speed without/with load mm/s: 160/130 Lowering speed without/with load mm/s: 110/130 Swing radius mm: 1485 Electronics: Curtis Drive motor: 0.45 kW Lifting motor: 2.2 kW Truck battery: 85Ah/24V Charger: Built In Fork wheel mm: Polyutethane 80 x 93 Drive wheel mm: 220 x 70 Gradient capacity without/with load: 10/5 degrees Brake: Electromagnetic Speed regulation: Electronic impulse Weight kg incl. battery: 540 Mast type: Duplex
The ECL is an economical walkie-electric stacker, with rated capacity of 1000 kg and a lifting height of 3440 mm. The compact and light design is suitable for a variety of low duty applications in warehouses.
Manual stacker PL 1000 ST, I43101
- Manual stacker with robust construction.
- Equipped with foot pump.
- Width 850 mm and length 1980 mm.
- Lifting speed 22 mm/lift.
- Width of forks 550 mm.
- Length of forks 1150 mm.
- Lifting capacity 1000 kg.
- Height 85-800 mm.
- Pole height 1200 mm.
- Conveyor radius 1380 mm.
- Fork wheels nylon, Ø 74 x 55 mm.
- Guide wheels nylon, Ø 180 x 50 mm, equipped with brake.
- The weight is 180 kg.
manual stacker PL 2500 ST, I43251
- Manual stacker with robust construction.
- Equipped with foot pump.
- Width 755 mm and length 1655 mm.
- Lifting speed 22 mm/lift.
- Width of forks 550 mm.
- Length of forks 1150 mm.
- Lifting capacity 1000 kg.
- Lifting height 90-2500 mm.
- Max mast height 2925 mm.
- Min pole height 1838 mm.
- Conveyor radius 1380 mm.
- Guide wheels nylon, Ø 150 x 50 mm, equipped with brake.
- Fork wheels nylon, Ø 80 x 70 mm.
- The weight is 280 kg.
semi-electric stacking PL 1600 EL, I43166
-
- The semi-electric stacker uses a battery-powered motor for the lifting, the moving is manual.
- The stacker is equipped with a battery and charger.
- Lifting capacity 1000 kg.
- Width of forks 580 mm.
- Length of forks 1150 mm.
- Width 800 mm and length 1678 mm.
- Lifting height 1600 mm.
- Pole height 2090 mm.
- Conveyor radius 1425 mm.
- Lifting speed with load 80 mm/s.
- Drop speed 120-150 mm/s.
- Engine power 1,5 kW.
- Battery 12V/120Ah.
- Charger 12V/15Ah.
- Guide wheels nylon, Ø 180 x 50 mm.
- Fork wheels nylon, Ø 80 x 78 mm.
- Weight including battery 400 kg.
