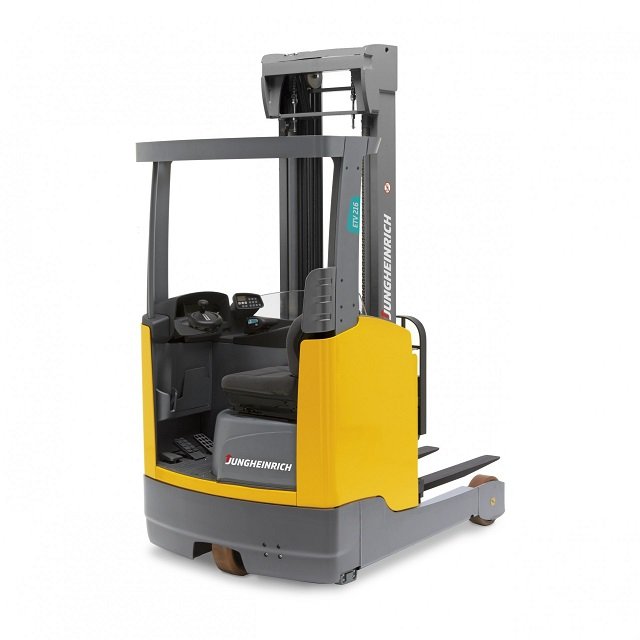

Stacker with sliding mast ETV/ETM 214/216 Jungheinrich

• A safe and reliable electric motor driven stacker.
• The stacker is compact, with an overall width of 800 mm and a length of 1800 mm.
• Compact in tight spaces.
• The fork measures 570 x 1150 mm.
• Min forks height 85 mm.
• Driving speed with load 4,3 km/h, without load 4,5 km/h.
• Drive motor power 0,45 kW.
• Battery 85Ah/24 V.
• Built-in charger.
• Guide wheels Ø 220 x 70 mm, fork wheels polyurethane Ø 80 x 93 mm.
• Electromagnetic brake.
• Conveyor radius 1485 mm.
• Centre of gravity 600 mm.
• Lifting capacity 1000 kg.
• Lifting height 1530 mm.
• Pole height 1950 mm.
• Mast type free standing.
• Lifting speed (loaded/unloaded) 110/160 mm/s.
• Rate of descent (loaded/unloaded) 130/110 mm/s.
• Lift motor power 2,2 kW.
• Electromagnetic traction braking.
• The weight is 430 kg.

• Manual stacker with robust construction.
• Equipped with foot pump.
• Width 755 mm and length 1655 mm.
• Lifting speed 22 mm/lift.
• Width of forks 550 mm.
• Length of forks 1150 mm.
• Lifting capacity 1000 kg.
• Lifting height 90-2500 mm.
• Max mast height 2925 mm.
• Min pole height 1838 mm.
• Conveyor radius 1380 mm.
• Guide wheels nylon, Ø 150 x 50 mm, equipped with brake.
• Fork wheels nylon, Ø 80 x 70 mm.
• The weight is 280 kg.

Capacity Kg: 1000 Min fork height mm: 90 Lifting height mm: 3000 Centre of gravity separation: 600 Min support height: 2035 Max support height: 3500 Total width mm: 820 Total lenght mm: 1770 Free lift mm: 0 Fork width mm: 160 Fork length mm: 1150 Driving speed without/with load km/h: 4/3.5 Lifting speed without/with load mm/s: 134/95 Lowering speed without/with load mm/s: 94/130 Swing radius mm: 1430 Electronics: Curtis Drive motor: 0,65 kW Lifting motor: 1,5 kW Truck battery: 75Ah/12V x 2 Charger: Built-in Fork wheel mm: Polyutethane 78 x 93 Drive wheel mm: 220 x 70 Gradient capacity without/with load: 10/3 degrees Brake: Electromagnetic Speed regulation: Electronic impulse Weight kg incl. battery: 570 Mast type: Duplex
